Assessment of Heavy Metals in Effluent Water Discharges from Textile Industry and River Water at Close Proximity: A Comparison of Two Textile Industries from Funtua and Zaria, North Western Nigeria

Oluwaseun E Odipe1 , Raimi Morufu Olalekan2* and Faisal Suleiman1

1Department of Environmental Health Sciences, School of Health, Allied and Environmental Science, College of Pure and Applied Sciences, Kwara State University, Malete, Kwara State, Nigeria
2Department of Community Medicine, Environmental Health Unit, Faculty of Clinical Sciences, Niger Delta University, Wilberforce Island, Bayelsa State, Nigeria

*Corresponding author: Raimi Morufu Olalekan, Department of Community Medicine, Environmental Health Unit, Faculty of Clinical Sciences, Niger Delta University, Wilberforce Island, Bayelsa State, Nigeria, E-mail: ola07038053786@gmail.com; morufu.raimi@waldenu.edu; odipe@yahoo.com

Received: November 11, 2018 Accepted: December 18, 2018 Published: January 2, 2019

Citation: Odipe OE, Raimi MO, Suleiman F. Assessment of Heavy Metals in Effluent Water Discharges from Textile Industry and River Water at Close Proximity: A Comparison of Two Textile Industries from Funtua and Zaria, North Western Nigeria. Madridge J Agric Environ Sci. 2019; 1(1): 1-6. doi: 10.18689/mjaes-1000101

Copyright: © 2019 The Author(s). This work is licensed under a Creative Commons Attribution 4.0 International License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Download PDF

Abstract

Environmental problems of the textiles industries are mainly cause by the discharge of wastewater coming from the dyeing and finishing processes containing the heavy metals. This study assessed the heavy metals concentrations in the surface water body of neighboring Funtua and Zaria textile industry and effluent water collected from Funtua textile industry using atomic absorption spectrometer (AAS). The concentrations of heavy metals like Lead (Pb), Cadmium (Cd), Iron (Fe), Zinc (Zn) and Coppernicium (Cn) were assessed and the concentrations of each of the metals varies in the samples collected and analyzed with the following values: Funtua water samples Fe 0.0025 mg/l lower part and 1.63 mg/l upper part, Zn 0.51 mg/l lower part and 1.02 mg/l upper part, Pb 0.007 mg/l lower part and 0.61 mg/l upper part, Cd 0.01 mg/l lower part and 0.016 upper part, Cn was not detected (ND), for effluent Fe 3.61 mg/l and 2.61 mg/l, Pb 2.66 mg/l and 2.69 mg, Cd 0.99 mg/l and 1.06 mg/l, Zn 2.26 mg/l and 2.99 mg/l, Cn ND also and for Zaria water samples Fe 0.96 mg/l lower part and 2.15 mg/l upper part, Zn 1.07 mg/l lower part and 1,74 mg/l upper part, Pb 0.36 mg/l lower part and 1.02 mg/l upper part, Cd 0.41 mg/l lower part and 0.66 mg/l upper part and Cn ND also. Fe and Pb showed concentrations higher than limits set by the NSDWQ and WHO while Zn and Cd showed concentrations below limits set by NSDWQ and WHO. The river neighboring Zaria textile happened to be more polluted than the one neighboring Funtua textile industry. It was concluded that the effluent samples of textile industries discharge causes pollution to the water bodies and serious problem for living being and ecological environment. Therefore, the effluent water to be discharged by these industries must be adequately treated before discharge.

Keywords: Heavy metal; Effluent; Water; Textiles industries.

Introduction

Industrial pollution is one of the problems presently facing Nigeria and the world at large while several efforts are being vigorously pursued to control it in various industries spanning length and breadth of the country to see that we live in a disease free environment. Effluent generated by the industries is one of the sources of pollution. Contaminated air, soil, and water by effluents from the industries are associated with heavy disease burden [1] and this could be part of the reasons for the current shorter life expectancy in the country [2] when compared to the developed nations. Some heavy metals contained in these effluents (either in free form in the effluents or adsorbed in the suspended solids) from the industries have been found to be carcinogenic [3] while other chemicals equally present are poisonous depending on the dose and exposure duration [4]. These chemicals are not only poisonous to humans but also found toxic to aquatic life [1]. The textile industry is distinguished by raw material used and this determines the volume of water required for production as well as wastewater generated [5].

Objectives of the Study

The study focused on assessing water quality of water samples at close proximity to the Zaria textile and Funtua textile industry in Northern Nigeria for heavy metal concentration.

Material and Method

Study area

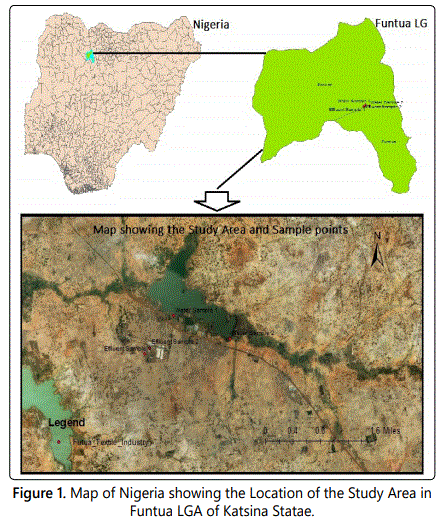

The study areas are Funtua textile industry (FT), Zaria textile industry (ZT) and their neighboring river. The Funtua textile is located at Funtua Local Government area of Katsina State and their neighbouring river(s) called “Mairuwa dam” is situated at latitude 11.587657 and longitude 7.238149 (Figure 1). The textile industry was established in 1978. The Local Government lies between latitude 11°32′N and longitude 7°19′E. Similarly, the Zaria textile industry limited is located at old Jos road, Dakace village of Zaria Local Government of Kaduna state. The textile′s neighboring river which is popularly known as “Zaria dam” was constructed across the Galma River in 1975. The Zaria Local Government has the population of 975228 people and lies between latitude 114′0.120” N and longitude 742′0.000”E (Figure 2).




Sample preservation

Samples for the heavy metal′s analysis were collected in 120 ml plastic container which were initially washed with detergent and rinsed with distilled water. The containers were finally rinsed with 20% Nitric acid before sampling. The samples were preserved by adding 1.5 ml of conc.HNO3 to each 1 liter of sample and the pH adjusted to 2.0 by the use of pH meter. The samples were stored in a refrigerator at about 40°C, for subsequent analysis. As samples may contain particulate or organic materials, pre treatment in the form of digestion is required before analysis. Nitric acid digestion was employed. The digested sample was taken to laboratory for Atomic Absorption Spectrophotometer (AAS) analysis [6].

Methods of analysis

Atomic absorption spectroscopy (AAS) determines the presence of metals in liquid samples. Metals determined include Fe, Pb, Cn, Zn, and Cd. It also measures the concentrations of metals in the samples. Typical concentrations range in the low mg/L range.

Data analysis

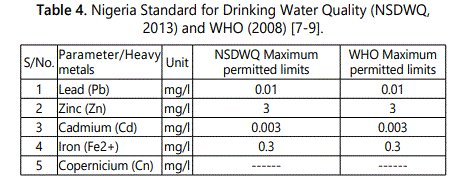

Data obtained were compared with the Nigeria Standards for Drinking Water Quality [7] and WHO [8] and presented in tabular forms and charts.

Results and Discussion

Result


Funtua Water samples


Effluent samples


Zaria Water samples


Comparisons







Discussion

FUNTUA

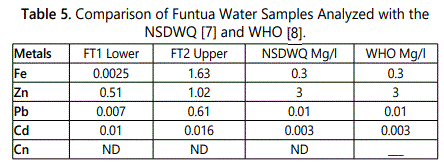

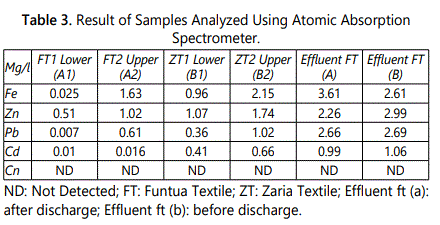

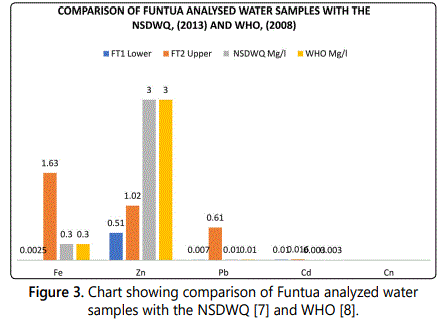

Funtua water samples: In the water sample neighboring Funtua textile industry analyzed using atomic absorption spectroscopy Fe was found to have concentrations of 0.0025 mg/l from the lower part of the river which is relatively lower than NSDWQ [7] and WHO [8] of 0.3 mg/l and concentrations of 1.63 mg/l from the upper part which is higher than NSDWQ [7] and WHO [8]. Other heavy metals have the following concentrations.

Zn: 0.51 mg/l from the lower part while 1.02 mg/l from the upper part and both from the lower and the upper of the river the concentrations of Zn are lower than NSDWQ [7] and WHO [8] of 3 mg/l.

Pb: 0.007 mg/l from the lower part which is lower than the NSDWQ [7] and WHO [8] of 0.01 mg/l while 0.61 mg/l from the upper part and this is higher than NSDWQ [7] and WHO [8].

Cd: 0.01 mg/l from the lower part and concentrations of 0.016 mg/l from the upper part and both are higher than NSDWQ [7] and WHO [8] of 0.003 mg/l.

Cn: this metal was not detected in the samples analyzed.

Funtua effluent water samples

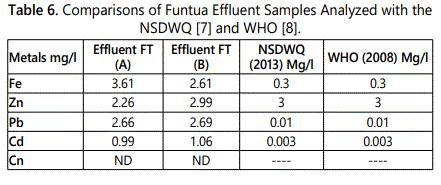

The effluent water samples analyzed has the following concentrations Fe 3.61 mg/l and 2.61 mg/l, Pb 2.66 mg/l and 2.69 mg/l, Cd 0.99 mg/l and 1.06 mg/l and all these are higher than NSDWQ [7] and WHO [8] of Fe 0.3 mg/l, Pb 0.01 mg/l, Cd 0.003 mg/l. while Zn have the concentrations of 2.26 mg/l and 2.99 mg/l which are lower than threshold limit specified by the NSDWQ [7] and WHO [8] respectively. And Cn was not detected in the entire effluent samples analyzed.

ZARIA

Zaria Water Samples

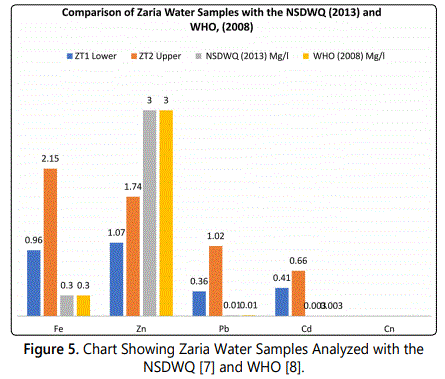

For the water sample neighboring Zaria textiles industry collected and analyzed Fe was found to have concentrations of 0.96 mg/l from the lower part and 2.15 mg/l from the upper part and all has the concentrations higher than NSDWQ [7] and WHO [8] of 0.3 mg/l. other heavy metals have following concentrations.

Zn: 1.07 mg/l from the lower part and 1.74 mg/l from the upper part which all have concentrations lower than that specified by the NSDWQ [7] and WHO [8] of 3 mg/l.

Pb: 0.36 mg/l from the lower part and 1.02 mg/l from the upper part and these concentrations are higher than NSDWQ [7] and WHO [8] of 0.01 mg/l.

Cd: 0.41 mg/l from the lower part and 0.66 mg/l from the upper part which are higher than the NSDWQ [7] and WHO [8] of 0.003 mg/l.

Cn: this heavy metal was also not detected from the entire samples analyzed.

Comparison of Each Element with their Locations and the NSDWQ [7] and WHO [8]

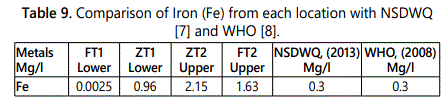

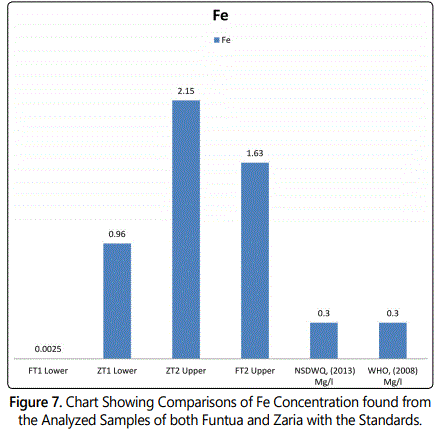

Iron (Fe) for Funtua water samples analyzed was found to have concentrations of 0.0025 mg/l from the lower part of the river which is relatively lower than NSDWQ [7] and WHO [8] of 0.3 mg/l and concentrations of 1.63 mg/l from the upper part which is higher than NSDWQ [7] and WHO [8]. While in Zaria water samples was found to have concentrations of 0.96 mg/l from the lower part and 2.15 mg/l from the upper part and all has the concentrations higher than NSDWQ [7] and WHO [8] of 0.3 mg/l as shown in figure 8.

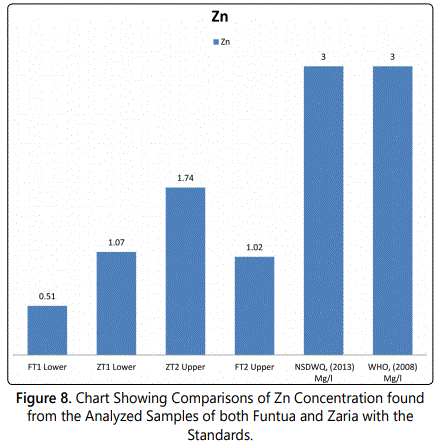

Zinc (Zn) for Funtua 0.51 mg/l from the lower part while 1.02 mg/l from the upper part and both from the lower and the upper of the river the concentrations of Zn are lower than NSDWQ [7] and WHO [8] of 3 mg/l. While 1.07 mg/l from the lower part and 1.74 mg/l from the upper part which all have concentrations lower than that specified by the NSDWQ [7] and WHO [8] of 3 mg/l for Zaria water samples analyzed as shown in figure 9.

Lead (Pb) for Funtua 0.007 mg/l from the lower part which is lower than the NSDWQ [7] and WHO [8] of 0.01 mg/l while 0.61 mg/l from the upper part and this is higher than NSDWQ [7] and WHO [8]. While these concentrations of 0.36 mg/l from the lower part and 1.02 mg/l from the upper part are higher than NSDWQ [7] and WHO [8] of 0.01 mg/l for Zaria water samples that are analyzed as shown in figure 10.

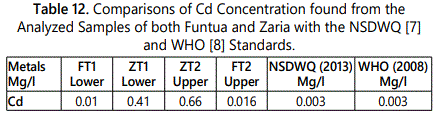

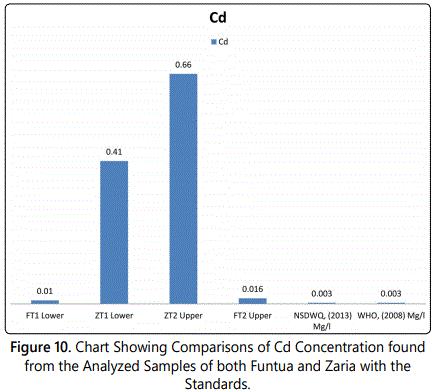

Cadmium Cd for Funtua 0.01 mg/l from the lower part and concentrations of 0.016 mg/l from the upper part and both are higher than NSDWQ [7] and WHO [8] of 0.003 mg/l. While 0.41 mg/l from the lower part and 0.66 mg/l from the upper part which are higher than the NSDWQ [7] and WHO [8] of 0.003 mg/l for Zaria water samples analyzed (Figure 10).

Coppernicium (Cn) this was not detected in the entire samples analyzed.

Inference

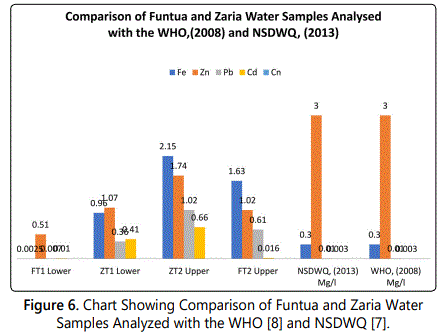

As shown in figures 6-10, the river neighboring Zaria textile industry happened to be more polluted than the river neighboring Funtua textile industry. And this showed the level of effluent water treatment undergone by Funtua textile before discharges to be more reasonable and higher/lower concentration level of heavy metals than that of Zaria textile industry although Zaria textile′s effluent was not gotten. There is a need for adequate treatment of effluent water before discharge in to the environment and water bodies as well as adequate treatment of the water sources to appropriate quality before uses as these concentrations could result in severe damage of the body organs over varying periods of consumption times.

Conclusion

The discharge of Funtua and Zaria textile industry′s effluent water into neighboring water bodies invariably result in the presence of high concentrations of pollutants (heavy metals) in the water. The Fe has been shown to be present in concentrations higher than the NSDWQ [7] in the upper part of the river neighboring Funtua textile industry which showed the lower part to be safer than the upper part and this is because it is close to the textile effluent discharging channel, Zn was found to be present in concentrations lower than NSDWQ [7] from both the upper and the lower part of the river which showed the water to be safe from Zn toxicity, Pb was found to be present in concentrations higher than the standards from the upper part and in concentrations lower than NSDWQ [7] in the lower part which showed the lower part to be safer than the lower part, Cd with concentrations above NSDWQ [7] from both lower and the upper part and Cn was not detected which showed the river to be safe from Cd and Cn. While for water samples neighboring Zaria textile industry Fe was found to be present in concentrations higher than NSDWQ [7] in both the upper and lower part, Zn was found to be present in concentrations lower than NSDWQ [7] in both the upper and the lower part of the rivers, Pb and Cd was found to be present in concentrations higher than NSDWQ [7] in both the lower parts and the upper parts of the rivers which both parts are not safe, and Cn was not detected in the entire sample analyzed. As shown in the figures 3 and 5 the upper parts of both the Funtua and Zaria happened to be more polluted than the lower parts. The effluents also have considerable negative effects on the water quality of the neighboring water bodies and as such, they are rendered not good for human use without adequate treatment.

Recommendations

  1. All textile industries should avoid the use of metallic dyes in their dying process which are possibly the sources of the heavy metals in the effluent and water discharges.
  2. Textiles industries should adopt the use of “Air Dying Technology” as the process uses air instead of water to dye garments, designs and color without polluting the water and the environment.
  3. All effluent water should be adequately treated to render it safe before discharge in to the environment and the neighboring water bodies.
  4. Imposition of direct charges on industrial effluents by the regulating agency.
  5. Continuous monitoring and surveillance is imperative in order to ensure the protection of water resources from degradation.
