Effects of Nano-Silica modified Self-Compacted, High Volume Fly Ash Mortar on Slump Flow and Compressive Strength

Veerendrakumar C Khed, Bashar S Mohammed* and Muhd Fadhil Nuruddin

Department of Civil and Environmental Engineering, Universiti Technologi Petronas, Seri Iskandar, Perak, Malaysia

*Corresponding author: Bashar S Mohammed, Associate professor, Department of Civil and Environmental Engineering, Universiti Technologi Petronas, Seri Iskandar, Perak, Malaysia, E-mail: bashar.mohammed@petronas.com.my

Received: July 6, 2016 Accepted: July 18, 2016 Published: July 23, 2016

Citation: Khed VC, Mohammad BS, Nuruddin MF. Effects of Nano-Silica modified SelfCompacted, High Volume Fly Ash Mortar on Slump Flow and Compressive Strength. Madridge J Nanotechnol Nanosci. 2016; 1(1): 9-12. doi: 10.18689/mjnn-1000104

Copyright: © 2016 The Author(s). This work is licensed under a Creative Commons Attribution 4.0 International License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Download PDF

Abstract

The purpose of this study is to establish the effects of nanosilica on high volume fly ash self-compacted mortar. The nanosilica was added from zero to 5% in mortar containing 70% fly ash replacement to cement. The flowability of 240 to 260 mm has been maintained by varying the polycarboxylic based super plasticizer. It has been observed that nanosilica had adversely effects the workability. On the other hand, nano-silica mitigated loss of compression strength due to high volume of fly ash replacement. The compressive strength of mortar containing 70% of fly ash replacement to cement and 5% addition of nano-silica has been improved by 94%.

Keywords: Nano-silica; Compression strength; Fly ash mortar; Plasticizer.

Background

The conventional concrete has few disadvantages mainly with its differential compaction, its durability and noise caused by the vibrating instrument. This has encouraged the researchers to develop self-compacting concrete (SCC). In SCC the mortar ingredients play an important part for better performance. Since the mortar is crucial for fluidity thus compacting on its own and it lubricates the coarse aggregate, thus it brings coarse aggregates nearer to each other. In this study the workability and compression strength of self-compacting cement mortar utilizing the binary products such as high volume fly ash and nanosilica had been carried out.

Utilizing high volume fly ash (HVFA) as cement replacement in SCC tends to be a possible solution, with reduction in cost of cement, improvement of workability. Although fly ash has a negative effect on the early strength development of concrete. Utilizing Nano Silica (NS) in high volume fly ash can be a possible solution to problem related to the strength loss in SCC, and the early poor strength development of HVFA in SCC due to NS high pozzolanic reaction, filler effect, and activation of fly ash pozzolanic reactivity.

Once upon a time, microsilica or silica fume, materialized to be a better pozzolanic cementitious substance, since it is a small in size which has the ability of high packing. In addition, silica fume are non-crystalline in its nature with more specific surface area and thus it reveals a high pozzolanic activity. In various applications, silica fume in partial replacement with cement had improved the hardened properties of cement paste [1-5]. In more recently the nano technology has been introduced in concrete containing nano materials in the form of nonosilica which is available in the market. Nanosilica is high pozzolanic material when compared to silica fume. Nanosilica is ultrafine in size to nanometer (1x10-9).

It is produced synthetically which is water emulsion amorphous colloidal silica. Hence it can be replaced with silica fume due to its high percentage content of amorphous silica [6]. Nano silica improves concrete mechanical properties, durability, lower the setting time, reduces the overall cost of construction [7]. Also, Nano silica is a highly reactive filler when used in concrete even at lower percentage and it densified the concrete micro structure, increase rate of hydration, reduces bleeding, reduces initial and final setting time in fly ash concrete and improves early strength development in fly ash concrete [7, 8].

H.Li et al. [9, 10], studied the inclusion of nano materials like nonosilica and nano-ferric-oxide particles of size 10nm in cement mortar, they found the increase of compression strength by 26% when compared with the control mix of cement mortar. Additionally, the concrete using nanoparticles had improved the abrasion resistance and pavement performance under the repetitive loads (fatigue loads) [11, 12]. Mondal.P et al [13] and Senff.L et al. [14] had worked on the effect of fresh properties like flowability and setting time, they found that flow decreases as the nanosilica addition increased and they also suggested that nanosilica in cement mortar had improved the strength and durability. BW. Jo et [15] explored the nanosilica modified cement mortar using 40nm size nano particles, they notified that strength increase about 170% on control mortar mix and 100% on silica fume mixture and also they had described that nanoparticles behaved like a nucleus in bonding the hydrated cement, a strong gel structure formed, therefore it improved the hardened mechanical properties. Chen et al [16] also investigated that nanosilica improved the compressive strength when compared with cement mortar comprising silica fume. Tang.M et al. [17] analyzed the SEM (scanning electron microscope) and X-Ray diffraction for comparing on cement mortar containing silica fume and nanosilica.

Lin et al [18] found the effect of nano materials on cement paste microstructure, their outputs were that the addition of nano particles in cement mortar increased the crystallization density, as higher the nano particles the more denser the crystallization and also the pore sizes were small and lesser in number.

JY Shih et al. [19] investigated that the nanosilica might fill the capillary pores and thus it leads to better pozzolanic activity. The cement mortar using nanoparticles were significantly improved the microstructural property and thus progressing towards its compressive strength and low permeability [20].

Experimental programme
Materials

The materials used in this experiment were ordinary Portland cement (OPC) which confirm to ASTM C150, class F fly ash which has overall amount of oxides 88.5% i.e. silicon (SiO2), aluminum (Al2O3) and iron (Fe2O3) and loss of ignition below 6% according to ASTM C618, and nanosilica containing 99.8% of SiO2. The chemical arrangements of the cementitious and pozzolanic materials are given in Table 1.Clean mixing water according to ASTM C 1602 with polycarboxylic based superplasticizer “Sika Viscocrete 2044” and river sand as fine aggregate.

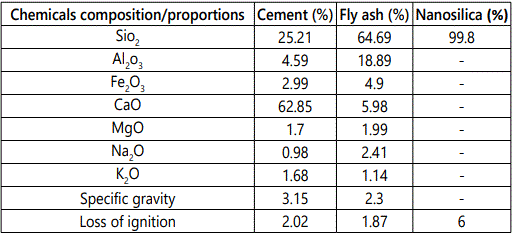

Table 1: Chemical configuration of the cementitious and pozzolanic materials.

Mix proportions

The concrete mix design for the control mix (without fly ash and nanosilica) of grade 40 MPa had been carried out according to ACI. For self-compacting concrete EFNARC guidelines were incorporated. The paste ingredients from the concrete mix design had been utilized for the experiment. In the first part the cement was replaced by fly ash up to 90% by weight of cement and in second part nanosilica was added up to 5% by weight of cement to high volume fly ash of 70% replacement. The superplastisizer was added to improve the workability. The corresponding mix proportions are shown in Table 2.

Table 2: Mixtures proportions by ratio per dry-mix of rubbercrete.

Experimental programme
Slump flow test

The flow property cement mortar using polycarboxylic based super plasticizers were defined by slump flow. A mini slump flow test was carried out to ensure the flowability of mortar according to the EFNARC guidelines. The test set up is as shown in the Figure 1. The mini slump cone was positioned at the centre of base plate and it was filled with fresh mortar mix, immediately lifting the cone, the mortar spreads on the steel plate. The average diameter (in mm) was measured to know the slump flow as shown in Figure 2. The spread mortar was checked visually for segregation. The self compacting mortars were designed for the slump flow diameter of 240-260 mm which was obtained by varying in amounts of SP. The SP contents for slump flow are summarized in the Table 3.

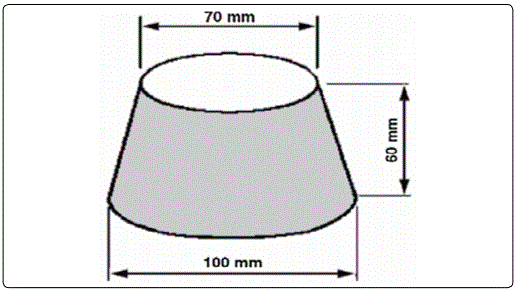

Figure 1: slump flow test setup

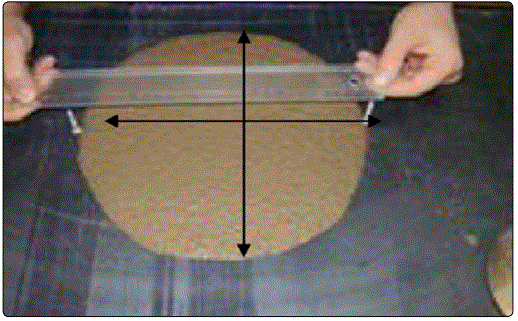

Figure 2: Slump measurements

From the Table 3, it can be clearly noticed that fly ash replacement to the cement had enhanced flowability, 90% replacement of cement in mortar has the better workability which could be observed by its least demand of SP. However, when nano-silica was added in percentages from 0 to 5, SP required was increased as the nano silica addition rises. The mixtures became harder as the nanosilica content increased; it can be observed from the Table 3 that SP required for 5% addition of nano silica has increased to 2.5%, this clearly shows that the addition of nanosilica affected the workability due to its higher specific surface area.

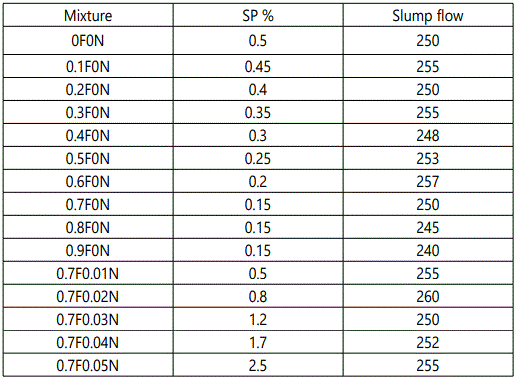

Table 3: Slump flow for SP addition

3.2 Compression strength

The compression strength test on cement mortar cubes were carried out for all the 15 mixtures. For each mix 3 cubes of size 50x50x50 were casted and tested after 28 days. The variation of compression strength with replacement of fly ash and nanosilica are shown in Figures 3 & 4.

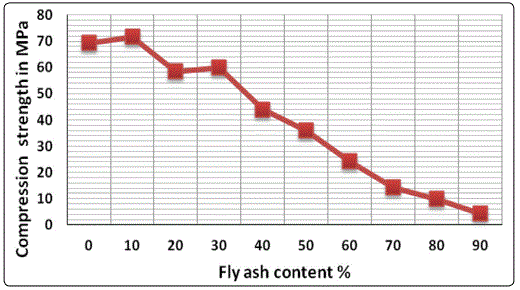

Figure 3: compressive strength versus fly ash replacement

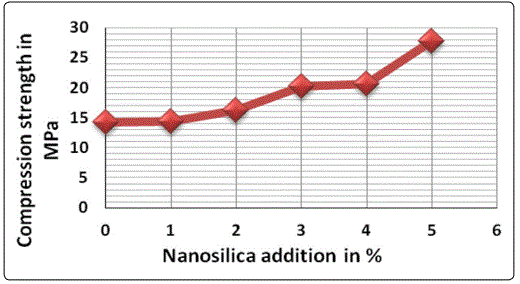

Figure 4: Compressive strength versus nano-silica addition

Figure 3, shows the relation between compressive strength of mortar and fly ash replacement to cement with zero addition of nanosilica has been plotted. Here it can be observed that the general trend of diminishing the strength as the fly ash replacement increases but at 10% replacement it exhibited a highest strength as compared with all other mixtures. 1/16th of compression strength was decreased when compared the 0 and 90% of fly ash replacement. It shows that fly ash develops the low early strength at higher percentage replacement.

In Figure 4, the line diagram had been plotted compression strength against the nanosilica addition for high volume replacement of 70% fly ash. The strength has improved as the nanosilica addition increased. 94% of compression strength boosted when compared with 0% and 5% addition of nanosilica. This indicated that nano silica high pozzolanic reaction, filler effect, improvement of the interfacial transition zone between the cement paste and activation of fly ash pozzolanic reactivity.

Conclusions

The current research draws the following conclusion for the addition silica fume in high volume fly ash cement mortar. Fly ash improved the workability of self compacting mortar but at higher volume replacements the compression strength at 28 days has drastically reduced.

The addition of nanosilica affected negatively on flowability of self compacting mortar. Nanosilica mitigated the strength loss due to fly ash due to its high pozzolanic activity, its filler effect improved the interfacial transition zone between the cement paste.
