Preparation and Characterization of the PVA Nanofibers produced by Electrospinning

Tariq J Alwan1*, Ziad Abdulahad Toma1, Muhsin A Kudhier1 and Kareema M Ziadan2

1Department of Physics, College of Education, Al-Mustansiriyah University, Baghdad, Iraq
2Department of Physics, College of Education, University of Basrah, Basra, Iraq

*Corresponding author: Tariq J Alwan, Department of Physics, College of Education, Al-Mustansiriyah University, Baghdad, Iraq, Tel: 00964 7705351515, E-mail: tariqjaffer2000@yahoo.com

Received: February 9, 2016 Accepted: March 10, 2016 Published: March 15, 2016

Citation: Alwan TJ, Toma ZA, Kudhier MA, Ziadan KM. Preparation and Characterization of the PVA Nanofibers produced by Electrospinning. Madridge J Nanotechnol Nanosci. 2016; 1(1): 1-3. doi: 10.18689/mjnn-1000101

Copyright: © 2016 The Author(s). This work is licensed under a Creative Commons Attribution 4.0 International License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Download PDF

Abstract

Electrospinning is a simple and quick technique for producing fibers with nanoscale diameters from a wide range of materials. The Polyvinylalcohol PVA Polymer dissolved in the DMF was electrospun to obtain the alignment nanofibers PVA. The nanofibers were obtained using 25 wt% solution concentration, an applied voltage 10 kV, spinning distance10 cm and different flow rates of 0.1, 0.2, and 0.3 ml/hr. The properties of alignment nanofibres including morphology, crystallization, functional group and the effect of flow rates on it was studied. The morphology of the electrospun PVA nanofibres is studied using scanning electron microscopy (SEM). Structural characteristics analysis by X-ray diffraction (XRD) that showed the crystalline peaks of the PVA nanofibers. The formation of functional groups of PVA polymer was predicted by the FT-IR spectra

Keywords: PVA; Electrospinning; Nanofibers; Flow rate.

Abbreviations: PVA: Polyvinylalcohol; XRD: X-ray diffraction; SEM: Scanning Electron Microscopy

Introduction

Electrospinning is known as one of the famous methods to produce fibers in nanoscale, from different materials. These nanofibers shows several important characteristics such as a large surface area to the volume ratio, high porosity, and superior mechanical properties [1].

Nanofibers are a new class of material with special characteristics which make them appropriate for a wide range of applications such as filtration, aerospace, capacitors, transistors, drug delivery systems, battery separators, energy storage, fuel cells, and information technology [2].

In the electrospinning process, a high electric field is applied to polymer solution which is held in a plastic syringe with a capillary needle. An electric force caused by mutual charge repulsion acts opposite to surface tension. When the electric field is high enough, the polymer solution on the tip of the capillary needle elongates and forms a cone, known as Taylor cone. A critical value of the electric field exists for which the repulsive electrical force overcomes the surface tension. The polymer solution could generate a charge jet from the tip of the Taylor cone when a critical value is reached. As the jet accelerates in the electric field, radial charge repulsion results in the splitting of the primary jet into multiple filaments [3]. The diameter and size of nanofibres that produce by electrospinning method is affected by many factors such as, molecular weight of the polymer, solution properties, electric potential, flow rate, distance between the capillary and collection screen, and needle gauge [4].

Many types of polymers have successfully been electrospun into micr-nanofiber, like polyolefins, polyamides, polyesters, polyurethanes, polypeptides, polysaccharides, and polyvinylalcohol (PVA).

The aim of this work, have fabricated orientation PVA nanofibers by using electrospinning process with rotating collector, then study the effect of flow rates on the nanofibers diameters, morphology, alignment and structure of PVA nanofibers.

Experimental

Pure Polyvinylalcohol PVA polymer supplied by the ICI company (Mw=200.000), was dissolved in DMF at 25wt% concentration, the solution was stirred using a magnetic stirrer for 3h until the polymer completely dissolved.

2 ml of the solution was placed in a syringe, the syringe was connected to a metal needle an adjustable DC power supply held at the tip of the needle as an anode and rotating an aluminum cylinder collector as a cathode. The processing conditions of the different flow rates of 0.1, 0.2, and 0.3 ml/h were as below; the electrospun voltage is 10 kV, the distance between the needle and collector is 10 cm, and the needle diameter was 23 G. After electrospinning, the collected fibers samples were kept in an oven at room temperature for two hours to dry.

The collected electrospun nanofibers produced in the various experiments were characterized by scanning electron microscopy SEM to assess the fiber diameter, morphology, and alignment, SEM analysis was performed on a Hitachi S-4160 SEM. The structural characteristics of PVA nanofibers films were determined by X–ray diffraction. The measurement has been done by using Philips X– ray diffractometer that having the following features: source Cu, current was 30 mA, voltage was 40 kV, and the wavelength (l =1.5405Ao). The characterization bonds between the functional groups were measured by Fourier Transform Infrared FT-IR spectra (Shimadzu FTIR-8400S), all spectra was recorded between 4000 and 400 cm-1.

Results and Discussion

The morphology, nanofibers diameters and alignment of produced PVA nanofibers were examined using SEM. Figure (1) showed the SEM images of PVA nanofibers with different flow rates 0.1, 0.2, and 0.3 ml/h. The electrospinning of nanofibers from PVA soluble in DMF at concentration lower 25 wt% was difficult, to formation fibers, as the viscosity and surface tension of the solution were not high enough to maintain a stable drop at the end of the capillary tip.

From Figure 1 it was obviously observed that the PVA nanofibers exhibited uniaxial aligned nanofibers were obtained at all flow rates 0.1, 0.2, and 0.3 ml/h, under the same other conditions. However, it can be also seen from these images that there are fibers which are free from defects such as beads, relatively smooth and a generally uniform thickness along the fiber especially at low flow rates.

The increase of flow rate leads to decrease the number of nanofibers per unit area, and from another hand, the 0.1 ml/h flow rate appears to have the best alignment and the lower average diameters, the average diameters were increasing with increase the flow rate, but at all flow rates the diameters were under 100 nm.

Figure 2 shows X-ray diffraction (XRD) patterns of the PVA nanofibers in different flow rates. The diffraction pattern of PVA showed only one peak characteristic of crystalline PVA at 2q =18.7 and this agreement with Sharma R, et al. 2014, and Nguyen Thuy 2010 [5, 6], the characteristic peaks of PVA naoafibers were appear in all samples that preparation in different flow rates.

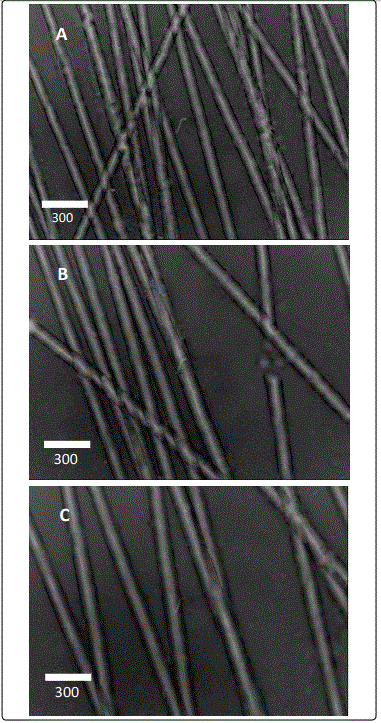

Figure 1: SEM images for electrospun PVA nanofibers prepared in different flow rates: (A) 0.1 ml/h (B) 0.1 ml/h (C) 0.3 ml/h

The average crystallite size (D) of the semicrystalline material can be calculated from the XRD spectrum by means of Full Width at Half Maximum (FWHM) method (Scherrer relation) [7].

Where Δθ is the full – width at half maximum of the XRD peak appearing at the diffraction angle θ, A Scherrer constant, usually assume A = 1, and l the wavelength of X-ray.

The results of average crystallite size are (101.5 nm, 95.8 nm, 91.3 nm for flow rates 0.1, 0.2, and 0.3 ml/h respectively, the sample prepared at flow rate 0.3 ml/h showed the lower crystallite size (91.3 nm) and its value increases with decrease the flow rate, The increase in crystallite size indicates uniformity, which may be due to improvement in the structure during the formation of nanofiber, and the electrospinning process [8-10].

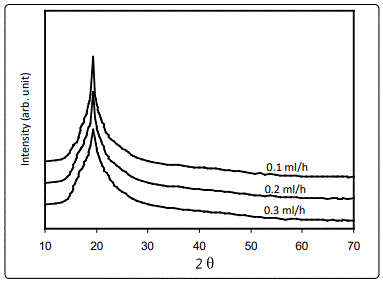

Figure 2: XRD spectra of PVA nanofibers prepared in different flow rates.

Figure 3 shows the FTIR spectra of PVA nanofibers, the absorption peaks of PVA nanofibers at about 3239 cm-1 refer to (–OH stretching), The bands corresponding to the (-CH2-) asymmetric and the symmetric stretching at 2900 cm-1. The band at 1340 cm-1 can be attributed to O–H and C-H bonding. The band at 958 cm-1 result from an angular deformation outside the plan of an O-H bond [11], from the Figure 3 notice that the spectrum of all samples are similar, observed a small change in intensity of the bands in the different flow rate. Nevertheless, there are no additional vibrational bands. Therefore the effect of flow rates on the PVA nanofibers does not effect on the bonds structure and this agreement with Sujith, et al. [12]

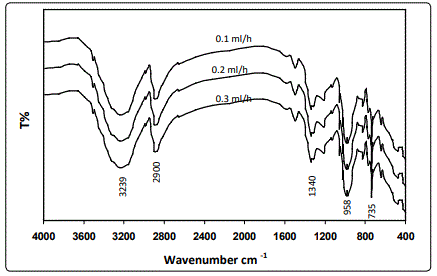

Figure 3: FT-IR spectra of PVA nanofibers prepared in different flow rates.

Conclusions

PVA nanofibers have been successfully produced using an electrospinning technique. The effect of flow rates on the morphology, nonfibers diameters, crystallinity, and functional groups of electrospun PVA nanofibers were investigated. It was found that the increase of flow rate was increasing the nonfibers diameters, and decreases the fiber crystallinity state. The flow rate was not effect on the bonds structure of the PVA nanofibers.
