The Potential of a Commercial Product based on Bacillus thuringiensis Cry1A-Cry2A Toxins as an Immunogen and Adjuvant

Guerrero GG1*, Favela-Hernández JM2 and Balderas-Renteria I3

1Universidad Autónoma de Zacatecas, Unidad Académica de Ciencias Biológicas, Lab de Immunobiologia, Campus II-UAZ, Zacatecas, Zac, México
2Instituto Multidisciplinario de Ciencias (AVICENA), Campus Torreón, Coahuila, México
3Universidad Autónoma de Nuevo León, Departamento de Investigación y Posgrado de la, Facultad de Ciencias Químicas, Lab de Ingeniería Genética y Genómica, Monterrey, Nvo León, México

*Corresponding author: Gloria Guillermina Guerrero, Profesor- Researcher, Unidad Académica de Ciencias Biológicas., Universidad Autónoma de Zacatecas Av. Preparatoria S/N. Campus, Universitario II. Col Agronómica, CP 98066. Zacatecas, Zacatecas, Mexico, Tel: (+52) 014921564376, E-mail: gloriaguillermina@uaz.edu.mx; gloguerrero9@gmail.com

Received: August 28, 2018 Accepted: September 14, 2018 Published: December 26, 2018

Citation: Guerrero GG. Favela-Hernández JM, Balderas RI. Glutamate Metabolism Regulates Immune Escape of Glioma. Madridge J Immunol. 2018; 3(1): 58-64. doi: 10.18689/mjim-1000114

Copyright: © 2018 The Author(s). This work is licensed under a Creative Commons Attribution 4.0 International License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Download PDF

Abstract

Bacillus thruingiensis Cry toxins are strong immunogen adjuvants and potential carriers of clinically important antigens, However, there are still safety and biological concerns for clinical use. In the present work, strong immunogenicity were measured through antibody production (IgM, IgA, IgG subclass) (in serum and broncheo-alveolar washes) and pro-inflammatory/anti-inflammatory cytokine induction after intranasal/oral immunization. First, we found that Th1-Th2 cytokines were induced (TNF-α, IFN-γ, IL-6, IL-4) as well as IL-17 and IL-10. Second, a remarkable higher systemic IFN-γ and TNF- α induction after oral immunization. These data were strengthened because no toxic effect in mammalian cells (pneumocytes classs II-A549 human cell line) at10 μg/ml was observed. Conversely; Cry1A toxins acted as an adjuvant of BCG vaccine immunity after A549 co-stimulation with BCG, a boost in the Th1-type response (IFN-γ and IL-12) was induced. In summary, all the data reported here, show that a commercial product based on B. thuringiensis Cry1A-Cry2A toxins is an strong immunogen and adjuvant, both properties could account for the development of non toxic therapeutic agents.

Keywords: Bacillus thuringiensis, Cry1A toxins, Cry2A IL-17, IFN-γ, IgG subclasses.

Introduction

Bacillus thuringiensis (Bt) Cry toxins belongs to a multigenic family of crystalline proteins, or “Cry” [1-3]. In a previous work, we have been shown that Bt tCry1A (1Aa, 1Ab, 1Ac) induce strong immune responses after intraperitoneal or mucosal administration (nasal) [4-8]. However, most of the studies have centered in the protoxin Cry1Ac (pCry1Ac), a strong immunogen, adjuvant and carrier [7-12]. The mechanism of these abilities remains to be defined. At this point, some studies have addressed this issue. For example, it has been demonstrated that there is an initial interaction of pCry1Ac with molecules like receptor [13]; whereas in monocytes elicited a higher expression of FcRn receptor after immunized with pCry1Ac [14] or with mice immune cells [15-16].

From the literature, it is well known that one of the most potent immunogen and adjuvant described until now is the one produced by Vibrio cholerae [17-21]. These properties are highlighted because after intranasal immunization of mice with small doses of cholera toxin, it was sufficient to induce Th17- cellular immune responses to bystander antigens [19; 20]. This type of cellular immune response was necessary to exert their adjuvant effect at mucosal sites and protective effects against spores of Bacillus anthrax [20]. Moreover, as an adjuvant, cholera toxin or the subunit B based candidates could provide with a promising alternative for human use. However, due to their inherent toxicity of cholera toxin as well as the high cost of engineering subunit B formulation, we think that Cry toxins could be a potential alternative as an adjuvant for clinical use.

The safety and biological effects of Cry toxins in mammals have been revisited recently [22]. In addition, several other reports have shown that under specific experimental settings, Bt Cry toxins could exert a toxic effect or deleterious [23-27]

Thus, for example it has been shown that mice feeded with transgenic maize and or purified Cry1Ab toxin, elicited humoral and cellular immune responses in serum of mice after sensitization by intraperitoneal or intragastric route. Not induction of IgE or toxicity was seen [26-29]. Moreover, a very recent report suggest that Bt Cry toxins could be used for human purposes but only if they are administered by mucosal, and nor by systemic or parenteral route [30]. The data reported here, highlight and strengthened these studies [30] that indicate that B. thuringiensis Cry toxins are safe only after mucosal immunization. In the present work, we found that after either in vivo (BALB/c mice) or in vitro (pneumocytes class II)(A549 human cell line), the commercial product based on Cry1A-Cry2A toxins showed a dichotomy action; either as a strong immunogen through mucosal immunization, of mice and as an adjuvant of BCG vaccine immunity in vitro (increase in the Th1 type cytokine induction (IFN-γ/IL-12), a novel property that might explored and account for the development of non-toxic therapeutic alternatives.

Material and Methods

Animals

Pathogen-free adult (seven to eight weeks old) BALB/c mice were obtained from Harlan, Co, USA and were housed and maintained in the animal facilities of the campus UACBUAZ (Zacatecas, Zac. Mexico). All animal experiments were performed according to the protocols approved by bioethical committee of the University Autonome of Zacatecas. Campus XXI and conformed to National Community guidelines (SENASICA AUT-B-C-0514-011).

Immunizations

Groups of seven to eight weeks- old BALB/c female mice were immunized intranasally (i.n.) or by oral route with sterile-phosphate buffered saline (PBS), or with a commercial based Cry1A-Cry2A toxin preparation Bactospeine® DF (Valent BioSciences de México, S.A. de C.V.) (2.5 μg/ml) in a final volumen of 10 to 20 μl. One week after first immunization, at intervals of once weeks during a total of three weeks, each group of mice were immunized by i.n. and/or oral route with PBS or comercial product based on Cry1A-Cry2A toxins (Bactospeine). Two weeks after the last immunization, mice were sacrificed, accordingly to the bioethics guidelines of UAZ (SENASICA AUT-B-C-0514-011). Serum and broncho-alveolar lavages were obtained and maintained at -80°C until use.

Enzyme-linked immunosorbent assays

To measure specific anti-Cry1A toxins levels in serum and/or, bronco-alveolar fluids (BAL), standard indirect ELISA were perfomed as described previously. Briefly, 96-well plates (Nunc Maxisorb, NY) were coated overnight at 4°C with 1 μg per well of Cry1A toxins dissolved in carbonate buffer (pH 9.6). Non-specific binding was blocked with 3% non-fat milk/0.05% Tween 20 in PBS. After incubating samples overnight a 4°C, plates were extensively washed, and bound antibodies were detected using goat anti-mouse IgM (1:2500); IgA-HRP (1:1000), [IgG1-HRP, IgG2a-HRP, IgG2b-HRP and IgG3-HRP conjugate to a concentration of 1:2500], followed by Streptavidin-Horseradish peroxidases conjugate (Mouse Ig isotyping ELISA, Bioscience). Color reactions were developed using Tetramethyl-benzidine in 0.05 N citrate-phosphate buffer (pH 5.2), supplemented with 0.01% H2O2. The reaction was stopped with 1M H3PO4. Optical densities were measured at 450 nm using a microplate reader. Amounts of IFN-γ, TNF-α, IL10, IL-4, or IL-17 in the supernatants were measured by using a specific sandwich ELISA (OptEIA; BD Bioscience BD PharmingenTM) according to the manufacturer's instructions. Assay sensitivities were 2.5 pg/ml for IFN-γ and 3 for the other cytokines (IL-17, IL-4, IL-10). Data are expressed as the mean ± SEM for each mouse group.

Viabiility assay

Cell monolayer of pneumocytes class II (A549) was prepared, to 10000 cells per well in a 96 plates and incubated overnight to 37ªC, 5% of CO2. Then, the monolayer was washed once with a HBSS solution and culture medium was added. The cells were stimulates as follow: BCG (MOI 10:1), a comercial product based on Cry1A-Cry2A toxins (Bactospeine) (10 μg/ml), BCG+ Cry1A-Cry2A toxins (Bactospeine) (MOI 10:1). As a control of toxicity Ursolic acid (20 μg/ml). Negative control (medium culture). Viability of the cells were determined at 24 and 48 h post stimulation. At each period of time, the supernatant was discarded. Trypan blue (0.01%) was added to the Wells. Alive and death cells were counted at light microscopy. The assays was performed by duplicate.

Statistical analysis

Statistical analysis to determine was calculated using ANOVA. Differences between the means were calculated by Tukey'test. A P value < 0.05 was considered statistically significant.

Results

Immunogenicity of a commercial based Cry1A-Cry2A toxin preparation (Bactospeine) after intranasal immunization of BALB/c mice.

It has been reported that mice feeded with transgenic maize and /or purified Cry1Ab toxin induced humoral and cellular immune responses in serum of mice after sensitization by intraperitoneal or intragastric route. Not induction of IgE or toxicity was observed [29-30]. Herein, a commercial Cry1A based product was evaluated in vitro and in vivo, respectively. To this end, mice were immunized by oral or intranasal route with Bactospeine (Cry1A-Cry2A toxins) (Figure 1). Thus, mice immunized by oral route with Bactospeine (Cry1A-Cry2A toxins) induced humoral response significant with respect to control PBS immunized mice (P< 0.05) but at lower magnitude than after intranasal immunization (P< 0.05) (Figure 1 upper and lower panel). Thus, at systemic level, IgA (0.57 ± 0.042 vs 0.36 ± 0.006) and IgM (0.54 ± 0.028 vs 0.35 ± 0.0) (Figure 1) were elicited. While at mucosal level, IgA (0.50 ± 0.016) and IgM (0.54 ± 0.008) were detected in BAL (Figure 1). Not difference in the IgG subclass Abs induced after oral immunization of mice with respect to those immunized by i-n. route either in serum or in BAL (Figure 1, upper and lower panel). However, the magnitude of these antibodies were significant with respect to control PBS immunized mice (P<0.05) in seric IgG1 (0.63 ± 0.04 vs 0.35 ± 0.005); IgG2a (0.59 ± 0.02 vs 0.36 ± 0.0 ); IgG2b (0.59± 0.014 vs 0.33 ± 0.007) and IgG3 (0.59 ± 0.04 vs 0.35 0.007) (P<0.05) (Figure 1); and in BAL, IgG1 (0.53± 0.03 vs 0.36 ± 0.005 ); IgG2a (0.59 ± 0.02 vs 0.35 ± 0.003); IgG2b (0.59± 0.014 vs 0.33 ± 0.007) and IgG3 (0.59 ± 0.04 vs 0.35 ± 0.0) were induced (P < 0.05) (Figure 1 upper and lower panel).

Interestingly, after intranasal immunization of mice with the commercial product Bactospeine (Cry1A-Cry2A toxins) (Materials and Methods), in general the humoral response was higher and significant (P< 0.05) with respect to control PBS immunized mice and with respect to oral administration of this product (Figure 1 upper and lower panel). Briefly, mice immunized by intranasal route with Bactospeine (Cry1A-Cry2A toxins) elicited significant levels of systemic IgM (0.65 ± 0.0007) and IgA,(0.64 ± 0.021) (P< 0.05) as well as IgG subclass antibodies [IgG1 (0.65 ±0.028); IgG2a(0.61 ± 0.021); IgG2b (0.61 ± 0.021); IgG3 (0.69 ± 0.07) (Figure 1 upper panel) in comparison with control mice [IgM (0.35 ± 0.0) and IgA(0.36± 0.006); [IgG1 (0.36 ±0.005); IgG2a(0.36 ± 0.0); IgG2b (0.33 ± 0.007); IgG3 (0.35 ± 0.003)] (Figure 1 upper panel) (P < 0.05). Moreover, the magnitude of the antibody response detected in BAL induced by the intranasal immunization of mice with Bactospeine, were significant with respect to control PBS immunized mice of IgM [(0.68 ± 0.030) vs (0.36 ± 0.007)]) and IgA [(0.61 ± 0.025) vs (0.35 ± 0.003)] (Figure 1 lower panel) (P < 0.05); while IgG subclass such as IgG1 (0.63 ±0.014); IgG2a(0.62 ± 0.020); IgG2b (0.58 ± 0.018); IgG3 (0.71 ± 0.010) were also significant (P<0.05) with respect to control mice [IgG1 (0.36 ± 0.018); IgG2a(0.35 ± 0.003); IgG2b (0.36± 0.03); IgG3 (0.36 ± 0.003)](P< 0.05) (Figure 1 lower panel)

A pattern of Th1-Th2 type cytokines as well as IL-17 and IL-10 were induced after intranasal immunization of BALB/c mice with Bactospeine (Cry1A + Cry2A toxins)

Next, due to the cholera toxin IL-17-inducing capacity (20-21), we investigate whether the commercial products based on Cry1A-Cry2A toxins (Bactospeine) have this ability. Thus, after intranasal immunization, mice induced at systemic level; mice elicited, IFN-γ (1127 ± 396 vs 149 ± 9 pg/ml); IL-17 (756 ± 96 vs 133 ± 6) ; TNF- α (5967 ± 651 vs 365 ± 7) and IL-6 (2354 ± 346 vs 392 ± 7 pg/ml) (P < 0.05); IL-17 (756 ± 96 vs 133 ± 6 pg/ml); IL-10 (814 ± 85 vs 161 ± 17 pg/ml). Not difference in IL-4 production with respect to control immunized mice (Figure 2I). Furthermore, at mucosal level (detected in BAL), mice elicited a significant amount of IL-10 (2215 ± 222 vs 683 ± 5 pg/ml) (P < 0.05); IL-4 (2037 ± 261 vs 457 ± 083 pg/ml) (P < 0.05); IL-6(1495 ± 254 vs 472 ± 33). IFN-γ (2165 ± 336 vs 647 ± 39 pg/ml); IL-17(2136 ± 143 vs 669 ± 8 pg/ml); TNF-α (2957 ± 277 vs 621 ± 11 pg/ml).

Predominant IFN-γ production at systemic level after oral immunization of BALB/c mice with Cry1A-Cry2A toxins (Bactospeine).

After oral immunization, unexpectedly, we found that mice immunized by oral route produced a significant amount at systemic level of IFN-g (4125 ± 707 vs 223 ± 13) (P < 0.05), IL-17 (1200 ± 0 vs 117 ± 14); IL-6 (1399 ± 198)(P < 0.05); TNF-α (4533 ± 378 vs 362 ± 35 pg/ml);, IL-10 (642 ± 103 vs 173 ± 21 pg/ml); and IL-4 (597± 59 vs 180 ± 3 pg/ml) (Figure 2-I-II). At mucosal level (detected in BAL); a difference in magnitude was observed in IL-10 (2165 ± 196 vs 647± 47 pg/ml); IL-4 (2083 ± 58; 542 ± 162 pg/ml); IL17(2850 ± 815 vs 472 ± 82);(P < 0.05); TNF-α (2176 ± 305vs 529 ±17 pg/ml)(P < 0.05)(P < 0.05)(Figure 2II); IFN-g(2460 ± 353 vs 800 ± 118 pg/ml) and IL-6 (1412 ± 172 vs 444 ± 44 pg/ml)(P<0.05) (Figure 2II right lower panel)

A commercial product based on Cry1A-Cry2A toxins (Bactospeine) did not affect the viability of pneumoctyes class II (A549 human cell line) in vitro.

From the above results, we prompted to pinpoint these immunogenicity in vitro. To this end, we used pneumocytes class II (A549 human cell line). First, toxicity was tested in vitro (Figure 3-I-II). Ursolic acid was used as a control of toxicity. (Figure 3I-II). As described in material and methods, the percentage of viability was calculated from the light microscope (Zeiss) observance using Trypan blue (Figure 3I). In comparison with Ursolic acid, no toxic effect were induced by the commercial product based on Cry1A toxins after 48 h after stimulation of cells (P < 0.05). Around 5-8% of decrease of viability was observed after 24 h post stimulation in comparison with control cells (stimulated with medium only (P< 0.05). However, the cells proliferate and restored viability was measured at 48 h) in comparison with any of the stimulus, Ursolic acid, BCG or BCG + Cry (Figure 3I, II) (P < 0.05).

A commercial product based on Cry1A-Cry2A toxins (Bactospeine) in Pneumocytes class II (A549 human cell line) acted as an adjuvant after co-administration with M. bovis Bacillus Calmette Güerin (BCG) vaccine.

Finally, we measured the cytokines induced by the effect of stimulation of A549 epithelial human cell line cells with commercial product based on Cry1A-Cry2A toxins. We found that A549 cells elicited, IL-10 [(BCG, 15140 ± 2382; Cry 18948 ± 1411; BCG+ Bactospeine (Cry1A+Cry2A) 17940 ± 707)] (P < 0.05), and IL-6 [BCG, 11450 ± 0.0; Cry 14825 ± 355;, BCG + Bactospeine (Cry1A+Cry2A toxins) 14575 ± 354] (P < 0.05) (Figure 4 upper panel)(gray bars). Remarkably, an increase in Th1-type cytokines such as IFN-γ (BCG, 14500 ± 823; Cry 17900 ± 283; BCG + Bactospeine (Cry1A+Cry2A toxins) (18890 ± 212) (P < 0.05) and IL-12 (BCG, 102330 ± 1838; Cry 6358 ± 530; BCG + Bactospeine (Cry1A-Cry2A) (15150 ±0.0)(P < 0.05)(Figure 4 lower panel, dark gray bars). Not effect in IL-17 or IL-4 cytokine production.

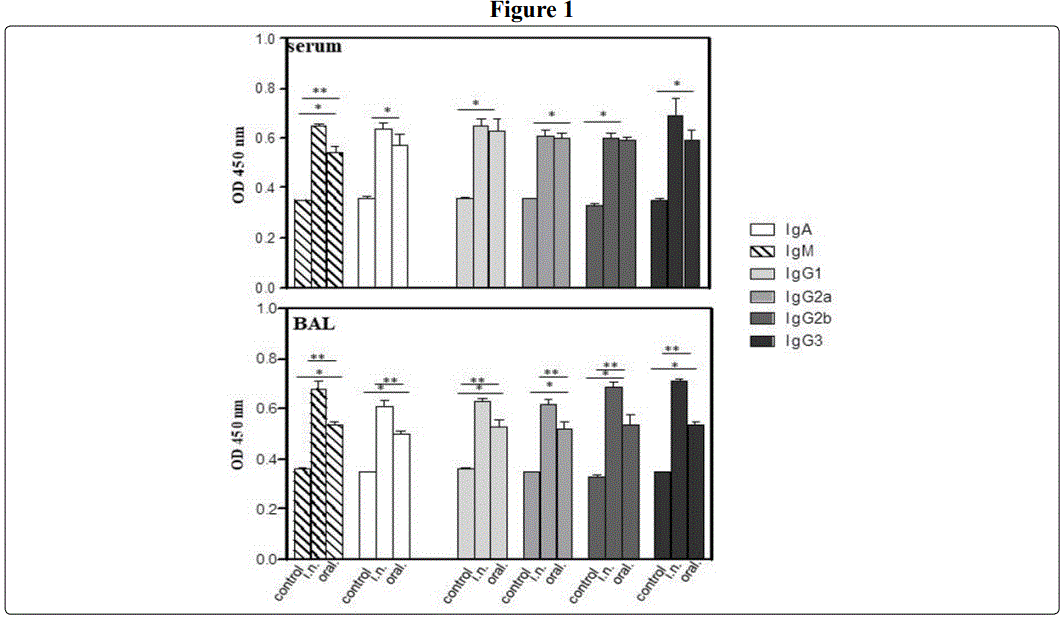

Figure 1. A commercial product based on Cry1A-Cry2A toxins (Bactospeine) acts like a strong immunogen (IgM/IgA, and IgG subclass) through intranasal (I) and after oral immunization of BALB/c mice (II). After sacrifice of mice serum and BAL washes were recovered and antibodies (mouse isotyping BD Biosciences) were detected either in serum or BAL using ELISA. Differences are significant at P<0.05 with respect to control PBS immunized mice (*) and between the i.n/oral routes (**).

Discussion

Bacillus thuringiensis Cry toxins have been shown to be strong immunogens, carrier and adjuvants through different routes of immunization [4-10]. However, still there are safety and bio-ethical concerns regarding its use in agricultural and clinic use [22-28]. Herein, we are reporting that a commercial products based on Cry1A-Cry2A toxins (Bactospeine)(BD Biosciences) did not show any toxicity either in vivo or in vitro assays; on the contrary, it show a dichotomy effect, as an strong immunogen and as an adjuvant of Th1-type cytokine of M. bovis BCG immunity

Despite of a huge amount of evidences supporting the use of the cholera toxin subunit B as a candidate vaccine adjuvant of bystander antigens [17-21], still there are concerns regarding its clinic use. Bacillus thuringiensis Cry toxins have been long used for decades for insect biological control [1-3]. In more recent years, it has been shown that pCry1Ac behaves as strong immunogen after different routes of immunization to mice [7-8]. Furthermore, pCry1Ac has been demonstrated that can be used as an adjuvant of clinically important antigens [9-12]. Regarding the mechanism of action of pCry1Ac in mice, it has been proposed that the observed immunogenic properties could involve the interaction of the pCry1Ac with surface proteins localized in the small intestine microvellosity of mice [13], and a more recent study show that pCry1Ac is able to interact with HSP70 followed by signalization through the ERK pathway in macrophages [16]. The effects of pCry1Ac interaction on intestinal epithelium is that can promote the regionalization of some receptors like pIgR [5] and increase the expression of FCRn in the intestinal epithelium of adult mice [14].

Bt Cry1A toxins, including tCry1Ac is comprised of three domains [1-2], one of them, domain II, is the binding domain; therefore, it is tempting to think that the observed immunogenic and adjuvant properties showed by these toxins might involve domain II of tCry1A [4]. However, not further studies have been made to assess this issue [4], [13-16]. In the present work, with focused to evaluate the non.toxicity of a commercial product Bactospeine (Cry1A-Cry2A toxins) either in vivo and in vitro assays. The data obtained, revealed that Bactospeine (Cry1A-Cry2A) did not exert any toxicity (Figure 3I-II)) (P < 0.05) on the contrary, through mucosal immunization, either after oral or intranasal route, elicited significant magnitude of Abs isotype (IgM and IgA) as well as IgG subclass Ab; and pro-inflammatory and anti-inflammatory cytokines (Figure 1-II;; 2I-II).(P < 0.05). Remarkably, after oral administration, we found that systemic IFN-γ, TNF-α as well as IL-17 were elicited (Figure 2II) (P < 0.05). Nonetheless, these cytokines were also induced at mucosal level (BAL) even at lesser magnitude (Figure 2I-II). Furthermore, these cytokines were also induced at mucosal level (BAL) even at lesser magnitude (Figure 2I-II). Furthermore, potential Bactospeine immunogenic properties were strengthened because after in vitro co-stimulation of pneumoytes class II (A549 human cell line)(Figure 4I-II), exerted an adjuvant activity of the BCG vaccine Th1-type inducing immunity (IFN-g, IL-12) Figure 4-II, P< 0.05), an ability that is being currently addressed. In summary, the data reported in this work, highlight a novel property of commercial product based on Cry1A-Cry2A toxins (Bactospeine) as immunogen and more important as an adjuvant, which open a potential alternative to be taken in account for the development of non-toxic subunits agents in infectious disease and other chronic human diseases.

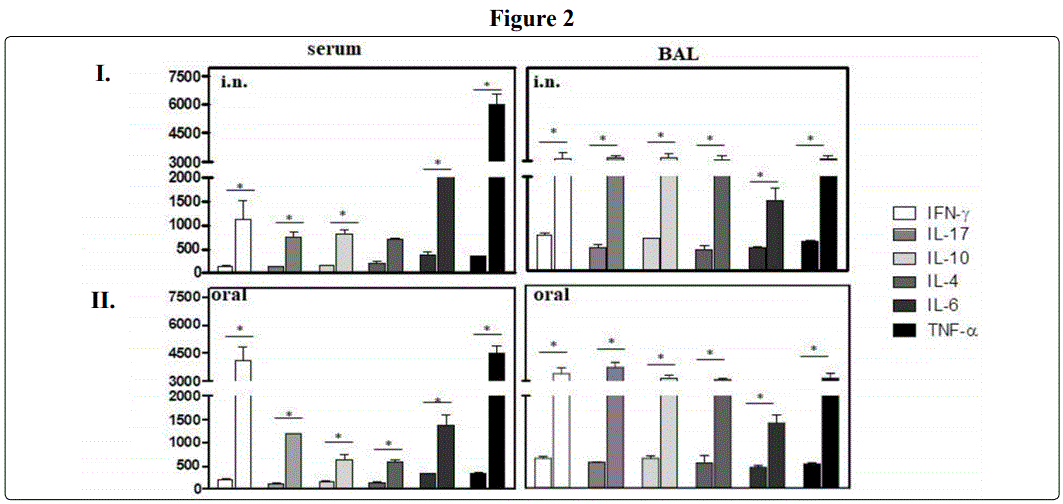

Figure 2. A pattern of Th1, Th2 and Th3 cytokines are elicited after intranasal (I) and oral immunization (II) of mice with a commercial product Cry1A-Cry2A toxins (Bcatospeine). After the third of immunization, mice were sacrificed and serum and BAL washes were recovered. Cytokine production were measured by ELISA. Values are expressed in pg/ml and represent media ± SEM of samples tested in duplicates from each group of mice. Differences are significant at P<0.05 with respect to control PBS immunized mice (*) for Abs and cytokines and between the i.n/oral routes (**) (for Abs only).

Figure 3. A commercial product based on Cry1A-Cry2A toxins (Bactospeine) is not toxic to pneumocytes class II (A549 human cell lines). To assess the toxicity of the mentioned formulation, a monolayer of A549 cells were stimulated as follow: BCG (MOI 10:1), Cry protein (10 μg/ml), BCG+ Cry (MOI 10:1). As a control of toxicity, ursolic acid (20 μg/ml) was used. Negative control (medium culture). Viability of the cells were determined at 24 and 48 h respectively, aftet stimulation. Thereafter each time, the supernatant was discarded. Trypan blue (0.01%) was added to the wells and alive and death cells were counted at light microscopy. The assays was performed by duplicate. Differences are significant at P<0.05 with respect to control PBS immunized mice (*) and with respect to ursolic acid (**).

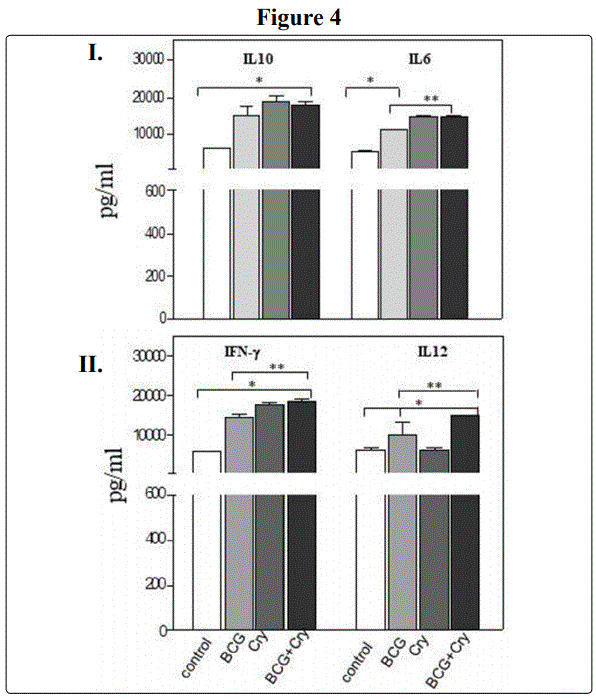

Figure 4. A commercial product based on Cry1A-Cry2A toxins (Bactospeine) boosted the BCG vaccine Th1 type cytokine production in vitro. Pneumocytes class II (A549 cells) were co-stimulated as described in mat and methods. Cytokine production (IL10, IL-6, IFNγ, IL-12, IL17) (BD Biosciences PharmingenTM were measured in the supernatant of the cell culture of each treatment and measured by ELISA. Values are expressed in pg/ml and represent media ± SEM of samples tested in duplicates from each group of mice. Differences are significant at P<0.05 with respect to control PBS immunized mice (*) and with respect to BCG vaccination without boost (**).

Disclosure of statement: The authors declare no conflict of interest.

Acknowledgements: The present work was supported by SEP (Programs; PRODEP, PIFI, PERFIL-PRODEP), and SNI CONACYT. The authors are grateful for the technical assistance of the members of the immunobiology lab group from ENCB.IPN. Mexico, City.
